ALIGA-Rapida Insect Protect VZ

Rapid action doors insect protection

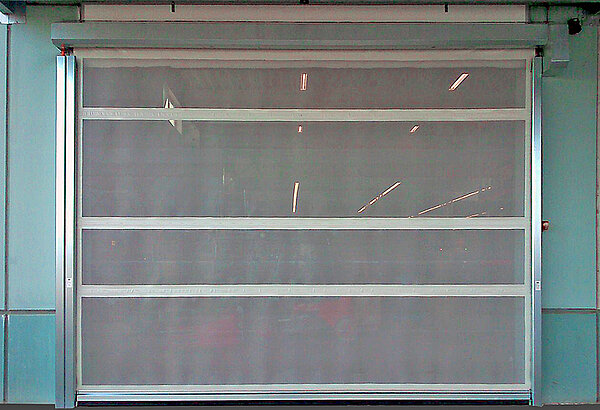

The ALIGA-Rapida Insect-Protect VZ is a fast roller shutter that prevents insects from entering the production area.
With an opening speed of up to 2.5 m / s, this door opens approx. 7 times faster than a conventional sectional door.

Equipped with our special insect protection insert "Air Flow" as standard, the high air permeability of 49% is ensured. In contrast to the conventional materials used, the "Air-Flow" is also extremely durable. The curtain can be completely or partially processed with the fabric.

In summer in particular, this ensures that heat or odors can escape from the production halls through the high-speed doors and that there is still a constant exchange of air and insect protection.



Suitable for indoor and outdoor use Standard size up to 5500 x 5500 mm (clear width x clear height) Further dimensions possible on request Opening speed: Adjustable up to approx. 2.5 m/s Closing speed: Approx. 1.5 m/s
Mechanical components made of galvanized steel Tension spring or counterweight integrated in the side panels Motor and shaft cover optionally available Anti-Crash System Emergency opening function according to ASR 1.7 possible
Depending on customer requirements, the curtain is made entirely or partially of special "Air-Flow" insect protection inserts (49% air permeability) Winter / summer function optionally available Wind resistance class according to EN 12424: Class 0-2 possible 9 standard colors for the intermediate Bars as well as customer-specific color selection possible
Frequency converter door control with digital display Safety light grids according to DIN EN 13241-1 for closing edge protection All common command devices can be combined Forefield monitoring possible
ALIGA-Rapida Insect Portect – Downloads
